Weight	25.1 kg
Dimensions	57.97 × 17.5 × 38.25 cm
Condition	New
Brand	Dell
Server Form Factor	Tower Servers
Hard Drive Interface	SAS, SATA
Number of Processors	1
Processor Model	Intel® Xeon® 6 Performance 6325P
Processor Cores	4
Processor Speed	3.5 GHz
RAM Size	16GB
Power Supply	Dual Redundant Power Supply
Delivery	Ask for a delivery time

Tech Specs & Customization

Processor

One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to eight cores or
One Intel® Pentium® G7400/ G7400T processor with up to two cores

Operating System

Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset



Accelerators
Up to 1 x 60 W SW GPU

Memory

DIMM Speed
Up to 4400 MT/s

Memory Type
ECC UDIMM

Memory Module Slots
4 DDR5 DIMM slots

Maximum RAM
ECC UDIMM 128 GB

Storage

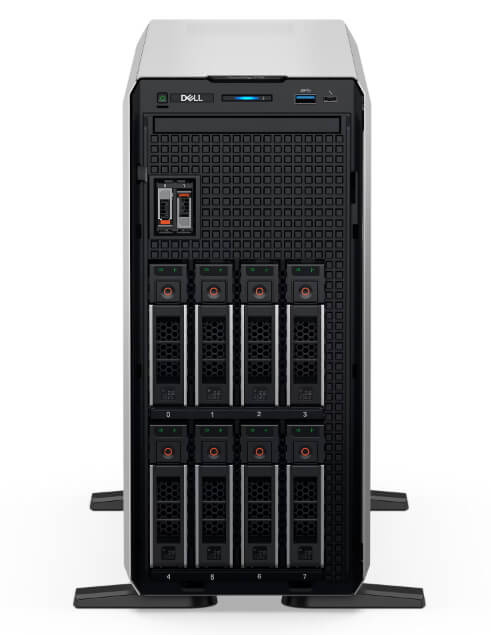

Front Bay
Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB
Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB

Mid Bay
NA

Rear Bay
NA

Storage Controllers

Internal Controllers
Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter

External Controllers
HBA355e Adpt

Software RAID
S160

Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
USB

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured-core server
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Consoles:
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center

Mobility:
OpenManage Mobile

Tools:
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations:
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager

Power Supplies

600 W Platinum 100 — 240 VAC or 240 VDC, hot swap redundant
700 W Titanium 200 — 240 VAC or 240 VDC, hot swap redundant

Ports

Network Options
2 x 1GbE LOM

Front Ports
2 x 1GbE LOM
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

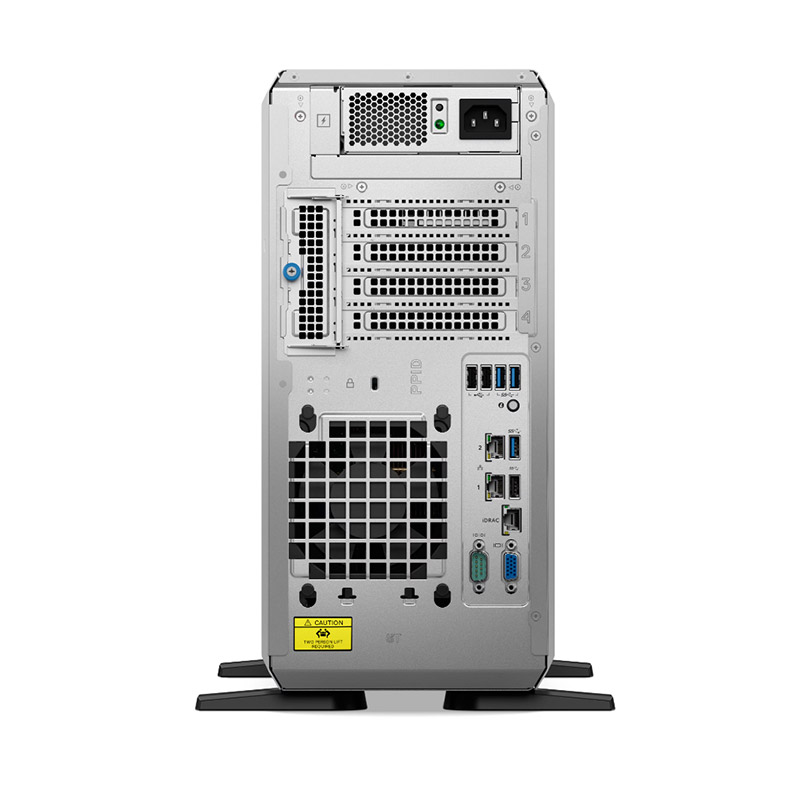

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.2 Gen1
1 x VGA
1 x Serial

Internal Ports
1 x USB 3.2 Gen1

Slots

PCIe
Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
One dedicated PCIe x8 slot on the system board for internal PERC

Chassis

Fans
Up to 4 fans

Bezel

Security Bezel
Optional Filter Bezel

Form Factor

1U rack server

Dimensions & Weight

Height
42.8 mm (1.68 inches)

Width
482.0 mm (18.97 inches)

Depth
598.9 mm (23.57 inches) with bezel
585.3 mm (23.04 inches) without bezel

Weight
13.23 kg (29.17 lbs.) maximum weight

Rack Support

Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
